1、采用ABS制作的手板模型，具備良好的抗沖擊性、耐熱性、耐低溫性，以及耐化學藥品性。

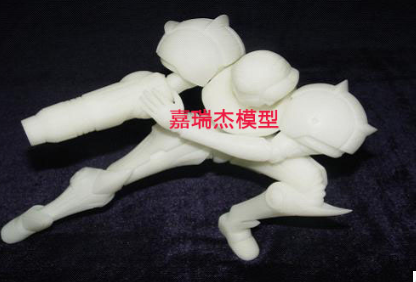

1. The prototype made of ABS has good impact resistance, heat resistance, low temperature resistance, and chemical resistance.

2、采用ABS制作的手板模型，在加工時，相對密度在1.05左右，不易吸水；遇到大件需要拆件加工時，拆件粘結非常牢固，不影響其強度，是適合做拆件加工的材料。

2. The prototype made of ABS has a relative density of around 1.05 during processing, making it difficult to absorb water; When encountering large parts that need to be disassembled for processing, the adhesion of the disassembled parts is very strong and does not affect their strength, making it a suitable material for disassembly processing.

3、采用ABS制作的手板模型，可以采用多種加工方式，如硅膠復模、CNC加工或者3D打?。黄淙菀准庸さ奶攸c(diǎn)，也使制作成本比其他材料低。

3. The prototype made of ABS can be processed using various methods, such as silicone replication, CNC machining, or 3D printing; Its easy processing feature also makes the production cost lower than other materials.

4、采用ABS制作的手板模型，容易進行后處理，其表面顏色呈不透明白色，材質本身可做上色處理，所以可完成多種顏色的手板制作，并且容易打磨，表面的拋光都可達到高光效果。

4. The prototype made of ABS is easy to post-treat, and its surface color is opaque white. The material itself can be colored, so it can complete the production of various colors of the prototype, and it is easy to polish. The polishing of the surface can achieve a high gloss effect.

ABS板材具有極好的沖擊強度、尺寸穩定性好、染色性、成型加工和機械加工好、高機械強度、高剛度、低吸水性、耐腐蝕性好、連接簡單、無味、具有優良的化學性能和電氣絕緣性能。能耐熱不變形，在低溫條件下也具有高抗沖擊韌性。還是一種堅硬，不易劃傷，不易形變的材料。低吸水性;高尺寸穩定性。

ABS sheet has excellent impact strength, good dimensional stability, dyeing properties, good forming and mechanical processing, high mechanical strength, high stiffness, low water absorption, good corrosion resistance, simple connection, non-toxic and odorless, and excellent chemical and electrical insulation properties. It can withstand heat without deformation and has high impact toughness even under low temperature conditions. It is still a hard, non scratch, and non deformable material. Low water absorption; High dimensional stability.

ABS板材加工注意點

Precautions for ABS board processing

1、常規ABS板不是很白，但韌性非常好，可以用剪板機裁剪，也可開模具沖。線鋸機、鋼絲鋸、鋼鋸等都很適合用來加工ABS板材;

1. Conventional ABS boards are not very white, but they have excellent toughness and can be cut using a shearing machine or punched with a mold. Wire saws, wire saws, and hacksaws are all suitable for processing ABS sheets;

2、加工ABS板材要看材料的厚度區分對待，如果是2毫米以下的ABS板材，用刀在表面劃一道線，然后向劃線反面一扳，就可以掰為兩部分了。

2. When processing ABS sheets, it is necessary to distinguish them based on the thickness of the material. If the ABS sheet is less than 2 millimeters, use a knife to draw a line on the surface, and then pull the opposite side of the line to break it into two parts.

3、而2毫米的材料就比較難扳斷，就要借助尖利的工具處理。可以將鉆頭磨成薄板鉆頭的形狀，使鉆出的孔邊緣整齊、美觀，但要注意切削速度不要太快，以免造成ABS板材損壞。

3. And the 2mm material is relatively difficult to break, so sharp tools need to be used for processing. The drill bit can be ground into the shape of a thin plate drill bit to make the edges of the drilled holes neat and beautiful, but it is important to note that the cutting speed should not be too fast to avoid damage to the ABS board.
